Magnetic Separator Machine Application
Hot Selling Magnetic Separator Machine

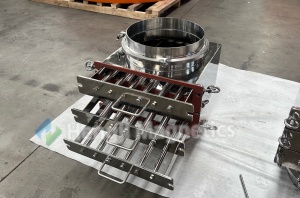

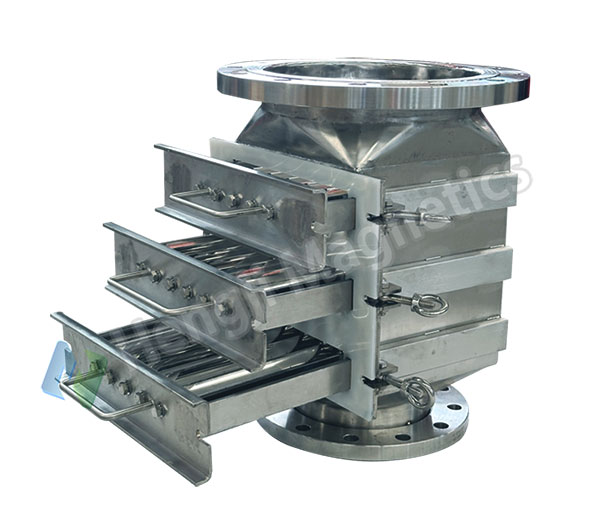

CBS Magnetic Grates Drawer Filter Magnet
● Strong Magnetic Force: NdFeB grid magnets with multi-layer design
● Drawer Structure: Quick-release drawer for easy cleaning
● Energy Saving: Zero power consumption, eco-friendly
● Wide Application: Food, chemical, ceramic powder processing
● Easy Installation: Flange/clamp connections for pipeline setup
● Durable Construction: Stainless steel, corrosion-resistant
● Safe Operation: Sealed, explosion-proof design

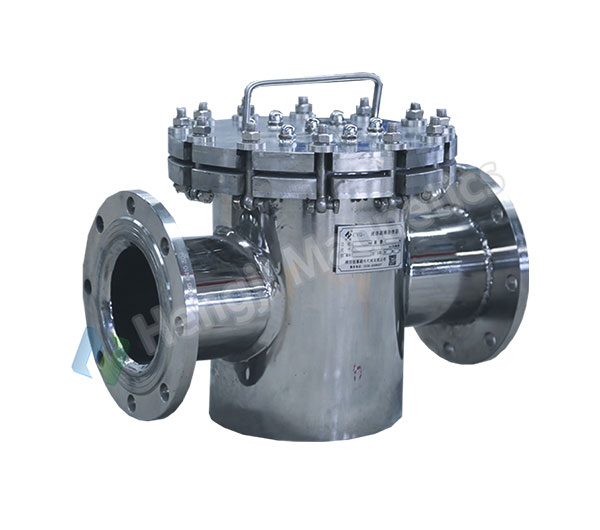

CYG Liquid Trap Magnet Separator
The CYG Liquid Line Magnetic Trap is an innovative solution designed to effectively remove fine ferrous contaminants, including weakly magnetic particles, from liquids, slurries, and pastes. Its advanced high-intensity magnetic technology ensures efficient extraction, making it an ideal choice for maintaining cleanliness and quality in continuous production lines.
Built with sanitary construction, the CYG Liquid Line Magnetic Trap not only protects sensitive processing equipment but also guarantees product purity by removing impurities without interrupting the production flow. Its durable design and reliable performance make it suitable for a wide range of industrial applications.
With its exceptional ability to enhance operational efficiency and ensure the highest standards of product safety, the CYG Liquid Line Magnetic Trap has become a trusted choice for industries prioritizing quality and reliability.

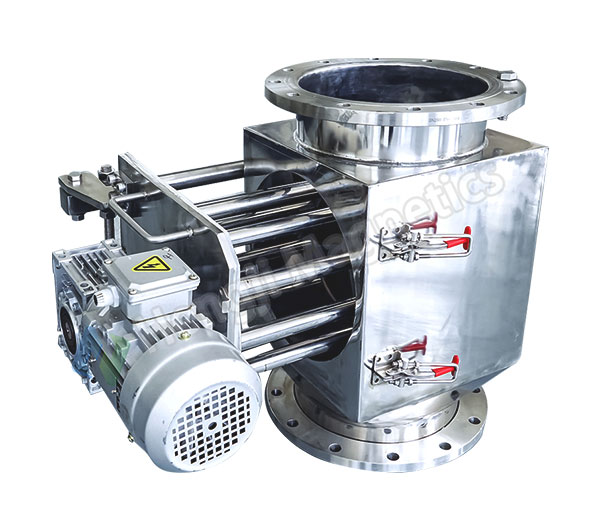

CGB Permanent Rotating Magnet Magnetic Field Separator
● High-Efficiency: NdFeB magnets with multi-layer rotating rods remove iron from 10-500 mesh powders and 6mm+ particles
● Anti-Clogging: Motor-driven rotating rods prevent material buildup
● Flexible Installation: Multiple options including free-fall, pipeline series, and flange connections
● Wide Applicability: Ideal for food, chemical, pharmaceutical, and plastic industries, especially sticky materials
● Semi-Auto Operation: Manual cleaning with low maintenance costs
● Durable Construction: Stainless steel, sealed design for harsh environments

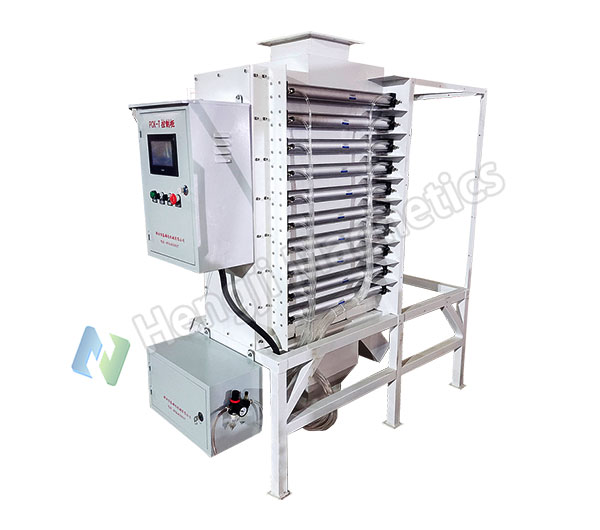

CQZ Drawer Magnets & Magnetic Grate Separator
● Strong Magnetic Design: NdFeB magnets with multi-layer grid arrangement
● Auto Cleaning: Pneumatic cylinder system for fully automatic operation
● Pneumatic Control: Programmable cycle with ≥0.3MPa air pressure
● Compact Structure: SUS304 stainless steel, sealed design
● Energy Saving: Zero power consumption, dust-free
● Wide Application: Suitable for food, chemical, pharmaceutical powders
● Smart Safety: Automatic cycling with material stop during cleaning

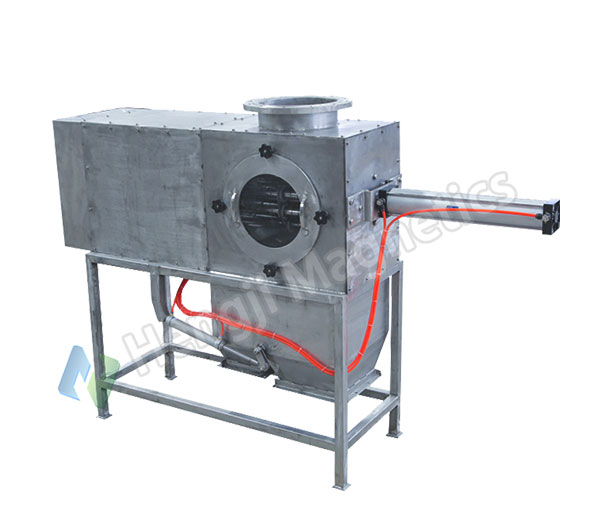

CBZ Automatic Rotary Magnet Magnetic Separator
● Rotating Magnetic System: Multi-layer rotating rods for uniform field distribution and dynamic separation.
● Fully Automated: Handles feeding, separation, and discharge without manual intervention.
● High Efficiency: NdFeB magnets achieve >99.5% iron removal rate for 100-400 mesh powders.
● Smart Control: PLC with variable speed and self-diagnostic alarms.
● Robust Construction: Stainless steel, sealed, and modular for easy maintenance.
● Wide Application: Ideal for powders in food, chemical, ceramic, and mining industries.

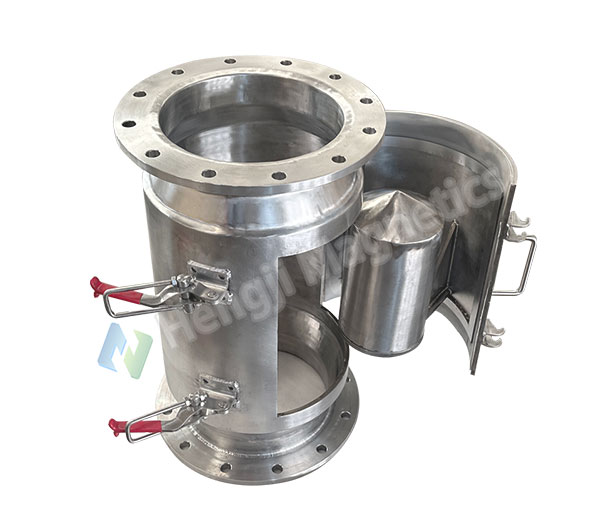

RCYZ Bullet Pipeline Magnetic Separator
The RCYZ Bullet Pipeline Magnetic Separator delivers high-efficiency ferrous removal in vertical material flow systems. The RCYZ Bullet Pipeline Magnetic Separator's advanced conical magnetic assembly creates focused flux density to capture fine contaminants (bolts, welding debris, screen fragments) from free-falling powders, granules, or pellets during gravity-fed transfers between silos, reactors, or packaging lines.
Engineered for critical purification, the RCYZ Bullet Pipeline Magnetic Separator features a streamlined bullet profile that minimizes flow resistance while ensuring 360° material contact. Energy-free operation requires zero electricity, reducing operational costs in continuous processes. The stainless-steel construction features quick-release clamps for rapid manual cleaning (<2 minutes) without pipeline disassembly.

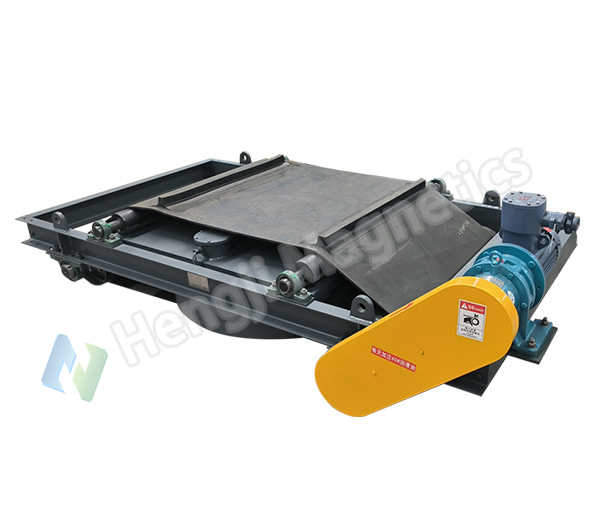

RCDD Electro Overband magnets & Belt Magnetic Separator
● Strong Magnetic Force: Optimized magnetic circuit removes 0.1–50kg iron impurities
● Fully Sealed: IP65 rating for dust/rain resistance in harsh conditions
● Auto Cleaning: Reducer motor and belt enable continuous operation
● Energy Saving: 30% less power than conventional units, under 65dB noise
● Smart Control: Silicon-controlled rectifier for precise magnetic adjustment
● Safe & Reliable: Self-tracking design prevents belt deviation
● Easy Maintenance: Modular design allows quick component replacement
● Long Lifespan: Sealed bearing housing extends service life

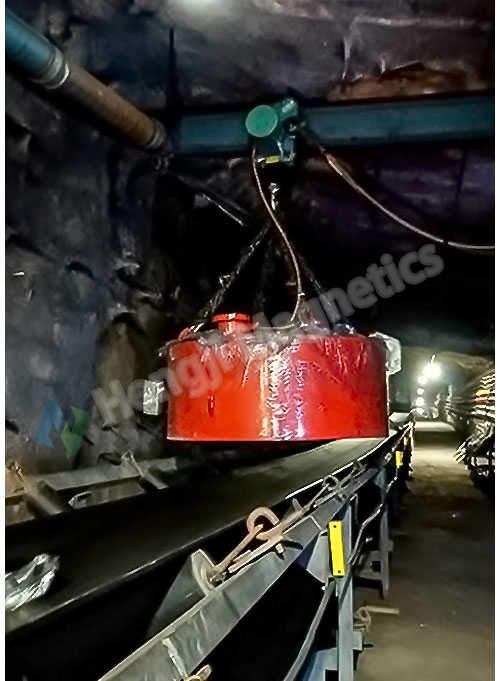

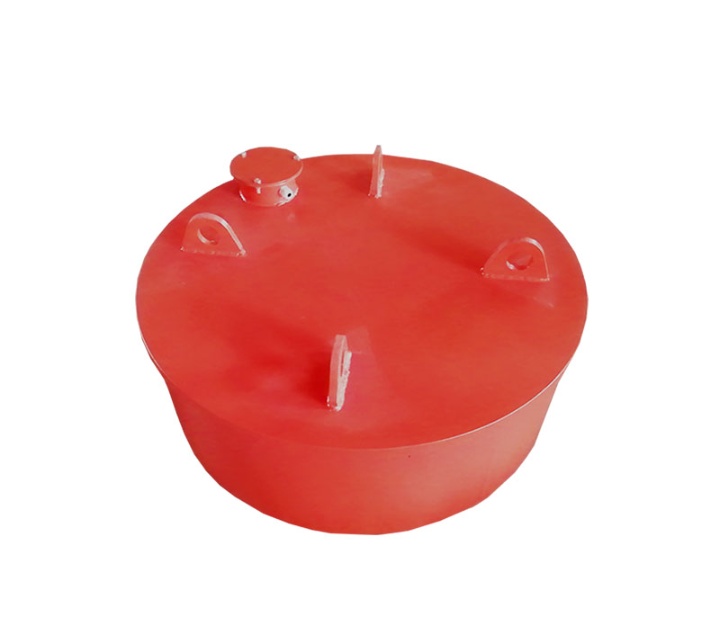

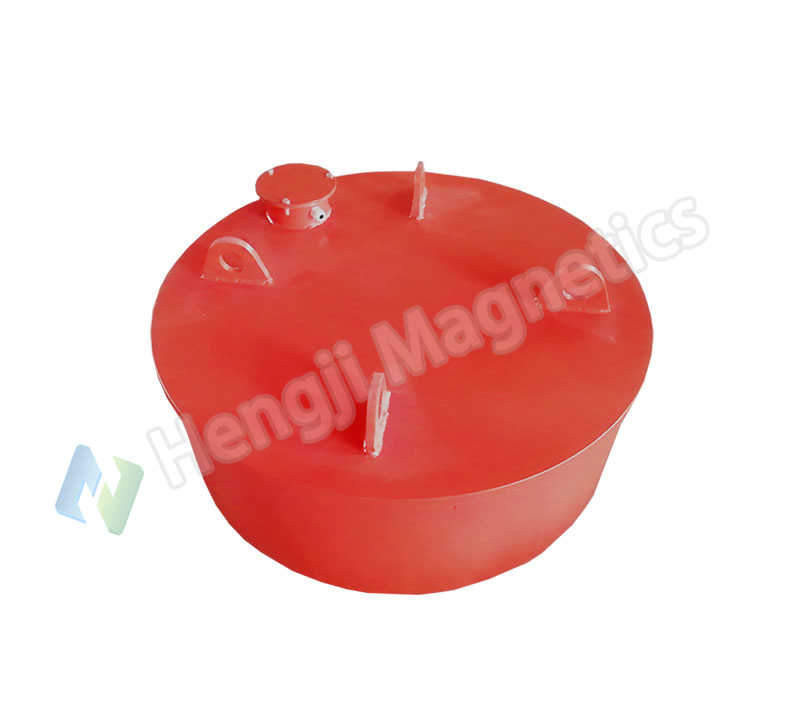

RCDB Suspended Electro Conveyor Magnet
The RCDB Overhead Electromagnet delivers industrial-grade tramp iron removal from bulk materials including powders, granules, and lump ores up to 50kg. Engineered with epoxy-encapsulated coils generating 14,500+ Gauss, it achieves 300mm deep magnetic penetration to extract excavator teeth, crusher plates, and reinforcement bars. The natural convection cooling system operates maintenance-free across -25°C to 65°C environments - ideal for mining, cement, and scrap processing.
Robust environmental protection makes this solution indispensable: IP66-rated sealing prevents dust/water ingress while corrosion-resistant construction withstands abrasive material streams. The RCDB Overhead Electromagnet features automatic demagnetization during discharge, ensuring positive material release without residual adhesion.
Operational advantages include 50% lower maintenance costs than oil-cooled alternatives and 24/7 reliability. The RCDB Overhead Electromagnet protects crushers, screens, and conveyors downstream from catastrophic damage in extreme industrial settings.
RCDF Oil-Cooled Self-Cleaning Electro Magnetic Separation Cross Belt Magnets
● Strong Magnetic Force: Computer-optimized magnetic circuit with deep penetration
● Efficient Oil Cooling: Internal-external circulation for low temperature rise
● Auto Cleaning: Cycloidal reducer driven self-discharging belt
● Full Sealing: IP65 rated for dust, water and corrosion resistance
● Smart Control: SCR rectification with adjustable voltage and multi-protection
● Long Lifespan: Vacuum-potted coils and stainless steel key parts
● Energy Saving: 30% less power consumption than standard separators

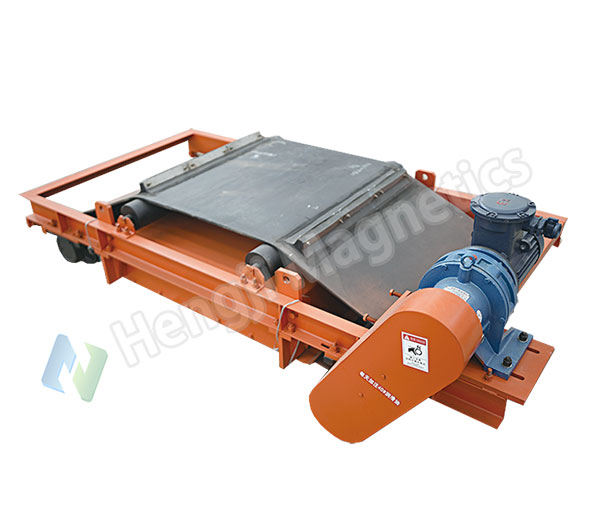

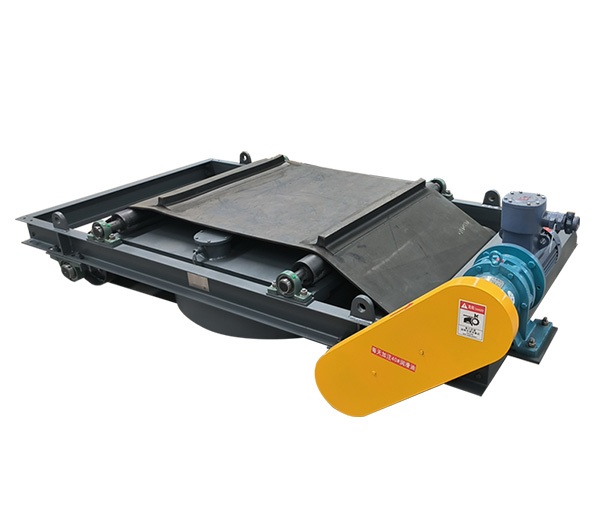

RCYD Permanent Self cleaning Magnetic Separator
● Strong Magnetic Force: Optimized magnetic circuit for high field strength
● Oil Cooling: Internal circulation for low heat rise
● Self-Cleaning: Auto discharge with scraper-equipped belt
● Full Sealing: IP65 rated for harsh environments
● Smart Control: SCR rectification with multi-protection
● Long Lifespan: Vacuum-potted coils and stainless parts
● Energy Saving: Optimized power consumption design

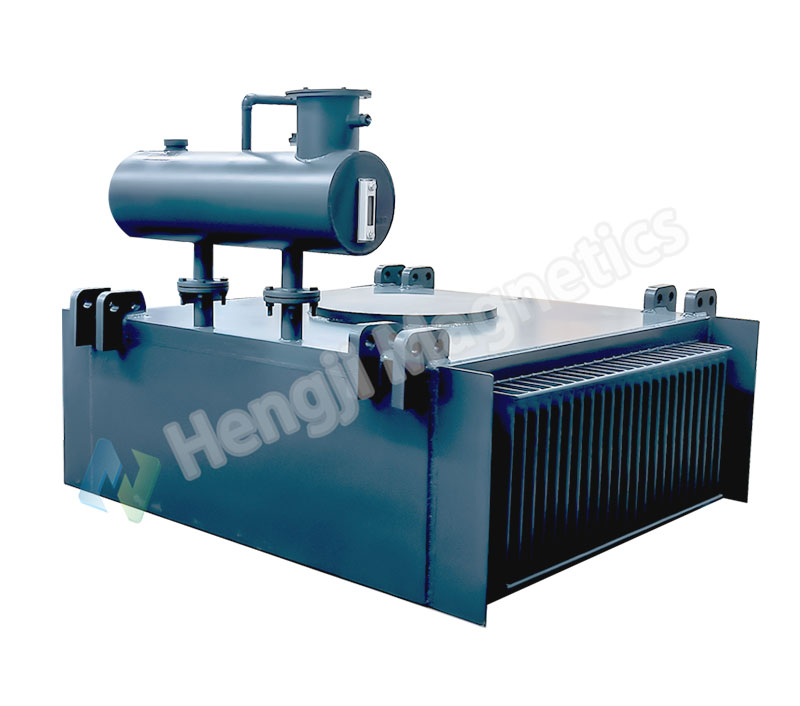

RCDE Oil-cooled Electric Magnets & Conveyor Magnetic Separator
● Efficient Cooling: Oil circulation system provides 3-4x better heat dissipation
● Strong Magnetism: Computer-optimized magnetic circuit for deep penetration
● Full Sealing: IP65 rated for harsh environments
● Energy Saving: F-class insulation with vacuum potting
● Smart Control: Adjustable voltage, works with metal detectors
● Quiet Operation: Under 75 dB noise level
● Easy Maintenance: Modular design, low operating cost

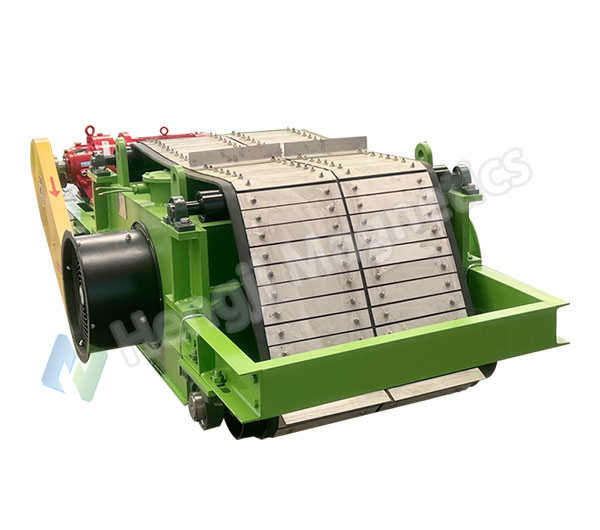

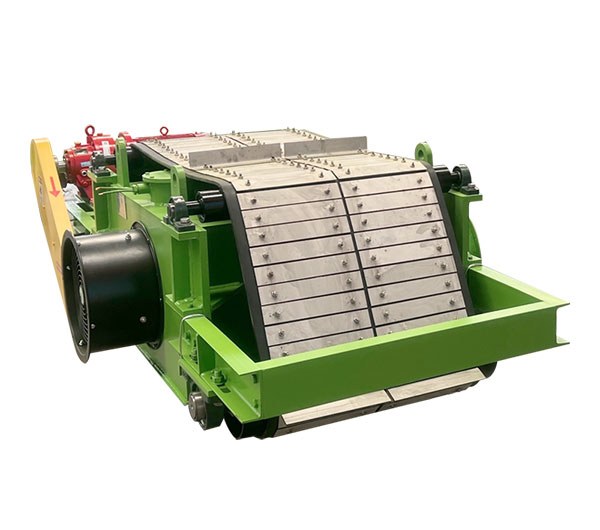

RCDC Air-cooled Cross Belt Electric Magnetic Separator
● Strong Magnetism: Computer-optimized circuit, ≥70mT field, 200mm penetration
● Efficient Cooling: Forced air cooling for 24/7 continuous operation
● Auto Cleaning: Cycloidal reducer drive, >98% cleaning efficiency
● Smart Control: Silicon-controlled rectifier, 0-220V adjustable, 40% energy saving
● Safe & Reliable: Class F insulation, IP65 rating, -20~40℃ tolerance
● Energy Saving: 30% less power, <79dB noise
● Durable: Self-tracking drum, vacuum-potted sealed construction
● Easy Maintenance: Modular design, quick component replacement

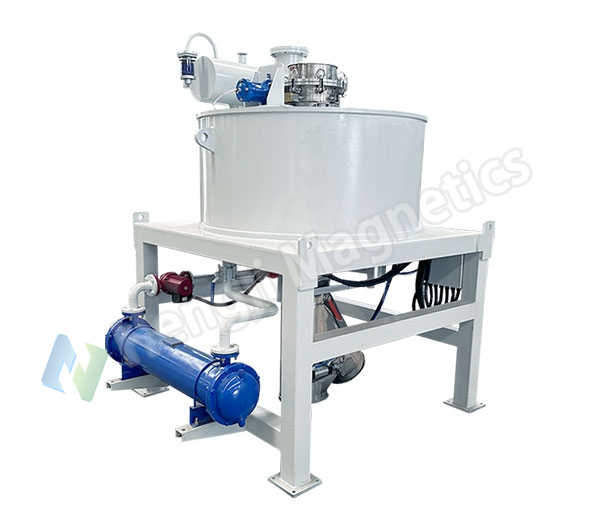

DCZ Fully Automatic Dry Electromagnetic Iron Separator Machine
● High Magnetic Force: 1.2T field removes micron-sized iron impurities
● Smart Adjustment: Stepless excitation current control for different materials
● Vibration Assisted: Adjustable amplitude/frequency prevents clogging
● Energy Saving: Silicon rectifier technology, low consumption, no pollution
● Compact & Durable: Enclosed design, stainless steel wear parts
● Safe & Reliable: Overcurrent/overtemperature protection, stable operation
● Intelligent Control: PLC system with remote monitoring
● Wide Application: Suitable for chemical, food, building material industries

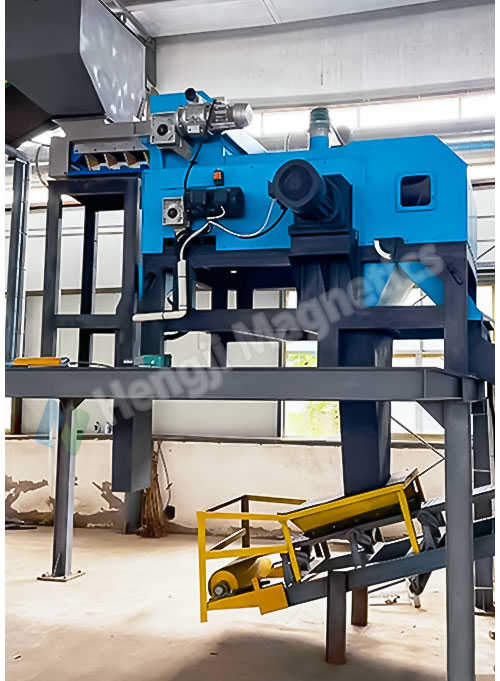

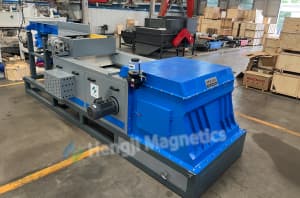

HECS Eddy Current Non-ferrous Metal Magnetic Separator
● High Efficiency: 95%+ separation rate, capacity ≤12m³/h
● Precise Sorting: Distinguishes non-ferrous metals by conductivity differences
● Variable Speed: 50-2800 rpm drum speed adjustment
● Smart Control: Frequency conversion system for easy operation
● Durable Build: Stainless steel rotor + wear-resistant conveyor belt
● Energy Saving: Low consumption, no secondary pollution
● Wide Application: Processes e-waste, auto shredder residue, etc.
● Modular Design: Main unit + control cabinet for easy maintenance

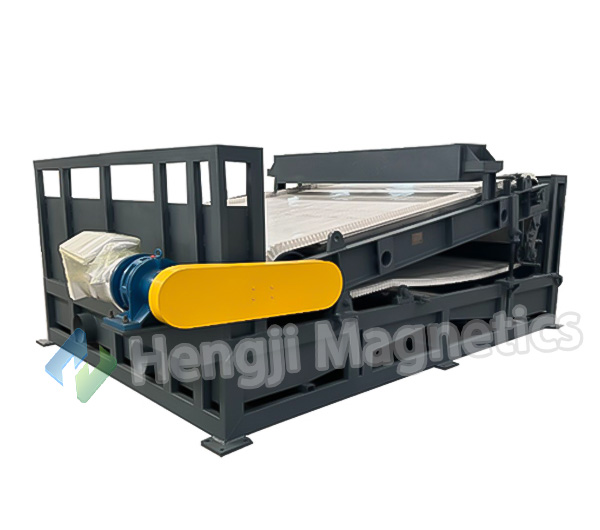

GTC Belt Wet High Intensity Magnetic Separator
● Ultra-High Intensity: 18,000 Gauss with powerful NdFeB magnets.
● Optimized Magnetic Circuit: Opposing pole design for maximum efficiency.
● Fully Sealed System: <5% magnetic decay over 10 years.
● Fully Automated: Stepless speed control for continuous operation.
● Anti-Blocking Design: Reverse material flow prevents clogging.
● Wide Application: Handles 1-25t/h of <5mm weakly magnetic minerals.
● Wear-Resistant: Stainless steel/non-magnetic contact parts.
Why Choose Hengji Magnetics

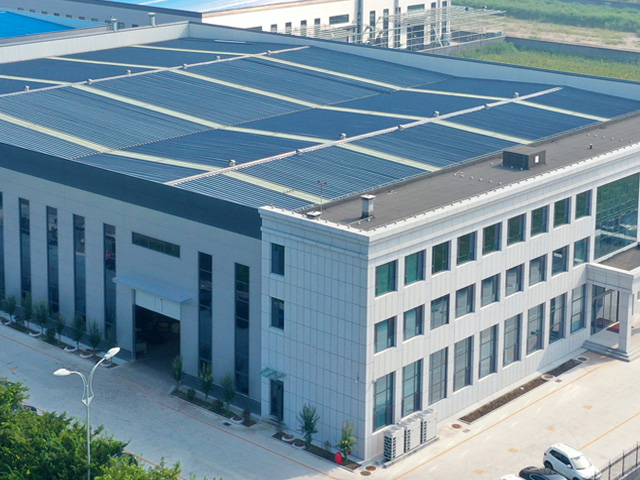

Founded 2004, Weifang Hengji is a High-Tech Enterprise specializing in magnetic separation equipment (dry/wet separators, iron removers) with RMB22M capital, 150 staff and 13 patents.
🔹 20+ Years of Expertise
🔹 Specialized Product Range
🔹 Strong R&D Capabilities
🔹 Advanced Separation Technology
🔹 Strict In-House Manufacturing
🔹 Comprehensive After-Sales Support
🔹 Trusted by Global B2B Clients
